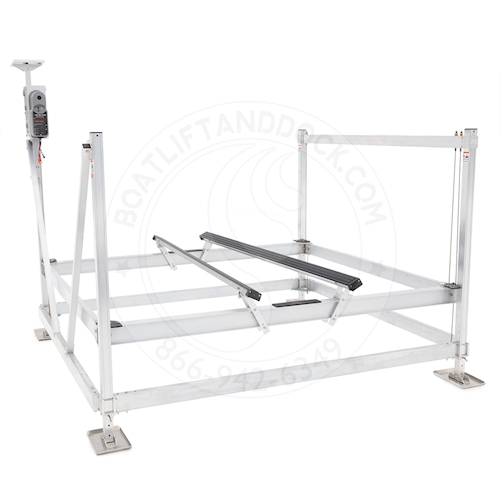

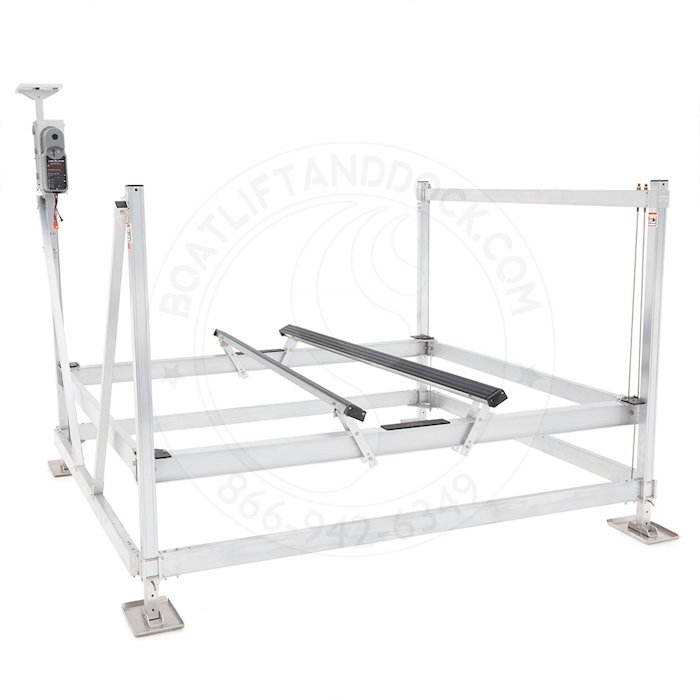

THE G.O.A.T. 4500 ALL-IN-ONE SOLAR POWERED FREESTANDING BOAT LIFT

This is our GOAT (Greatest Of All Time) DC powered vertical aluminum boat lift. When it comes to freestanding boat lifts, this is the only all in one system, just add batteries. The base of this system utilizes the Craftlander 45120 lift featuring a 120-inch span which is designed to accommodate watercraft as wide as 102 inches. This lift offers the necessary width and accessories to comfortably park and store most standard hull, ski hull and wakeboard boats with a loaded weights up to 4,400 pounds. Choose from the available options in the drop-down menu above to customize this lift according to your unique requirements.

THE GOAT BOAT LIFT KEY FEATURES

• 4500 lb Capacity with a 120" Max Beam
• 24v DC Powered Winch Motor Combo with Voice Assistance Technology
• Auto-Run and Auto-Stop (both upper and lower)
• 20 Watt Solar Charging System (higher Watt available)
• Low Voltage Alarm and Drift Protection
• Wireless Remote Operation
• 64" Lifting Height with 54" Telescoping Legs

Built for longevity, the stainless steel lift cables and a combination of stainless steel and brass fasteners enhance durability. The drop V side frame design allows for easier boat access. Engineered for environments with low and variable water levels, this lift offers a substantial 64" lift height, providing ample cradle travel and eliminating the need to relocate the lift to shallower or deeper areas. Its large, tapered pads or feet are designed for easy maneuverability across various surfaces and lakebeds, preventing snagging or sinking. This feature is especially beneficial for seasonal installation and removal.

Experience unmatched strength and durability with the DC Integrated Wireless Direct Drive Boat Lift Motor. Precision-machined and extruded for superior performance, this system sets a new standard in boat lift technology. Designed for ultimate convenience and protection, it comes equipped with advanced features, including:

• Voice Prompts for effortless operation
• UP and DOWN Limit Settings to prevent over-travel damage
• Auto-Run Mode, no reason to hold the button
• Low-Voltage Alarms for system safety and longevity
• Motor Condensation Protection

With the Voice Prompt Technology, setting operational limits is seamless, ensuring the protection of your winch box, cable, boat, and lift system. The fully integrated voice assistance pairs effortlessly with wireless key fobs, giving you total control at your fingertips.

BUILD YOUR 4500 GOAT LIFT

The 4500 GOAT is engineered to accommodate virtually any watercraft type and adapt to a wide range of lakefront conditions. Designed for maximum flexibility, this lift can be tailored to your exact needs with a variety of equipment accessories and customization options. As you configure your hoist, explore the available options to enhance performance and compatibility. These selections ensure your lift is perfectly suited to your boat, shoreline, and personal preferences—delivering the ultimate in convenience and reliability.

This section provides a description to the various options that you can have this hoist equipped with. These options are selected above the "Add to Cart" button, which allows you to build the configuration that you want.

BOAT SUPPORT OPTIONS: This hoist can be equipped with a variety of support hardware options. The following options are designed for particular watercraft hull designs. Boat Support options include complete hardware kits that are mounted to the moving cradle of the lift and are contact and support your boat.



STANDARD 10' VINYL / ALUMINUM HULL BUNK KIT – This configuration is well suited for single hull designs, including flat bottom, round bottom, and shallow-V hull designs. The Vinyl/Aluminum Bunk includes two individual aluminum extrusion bunk rails covered with a non-abrasive vinyl. These bunks are maintenance-free and do not trap lake sediment like older-style carpeted lumber bunks. The brackets allow the bunks to be adjusted across the cradle, customizing it to fit your boat.



SKI 10' VINYL / ALUMINUM HULL BUNK KIT – This configuration is well suited for single hull designs and is similar to the Standard bunk option above. However, the Ski version offers additional height clearance over the cradle beam so that the tracking skegs (fins located on the underside of ski and some wakeboard boats) clear the cradle on entering the lift. This bunk configuration is well suited for Deep-V and Ski / Wake style watercraft. The Vinyl/Aluminum Bunk includes two individual aluminum extrusion bunk rails covered with a non-abrasive vinyl. These Bunks are maintenance-free and do not trap lake sediment like older-style carpeted lumber bunks.

LOADING GUIDE OPTIONS: Loading guides are optional accessories that can be added to your lift at any time. They are highly recommended for those in rough and windy areas or for inexperienced drivers. They are designed to assist with leaving and parking your boat, by providing a "guide" aid to keep you centrally located within the hoist frame.



15'  HEAVY DUTY VERTICAL LOAD GUIDES - These 15' HD Vertical Load Guides are built for superior boat protection and stability. Featuring eight rigid aluminum uprights with durable PVC covers, each upright can be positioned anywhere along the side rail for a custom fit. Designed to provide strategic contact at impact-resistant points, vertical load guides help safeguard your boat in rough waters and high-wind conditions.



FULL LENGTH CARPETED SIDE GUIDES - These guides consist of aluminum upright brackets that securely attach to the I-beam of the hoist. These brackets support carpeted lumber rails reinforced with steel backer plates, extending the full length of the hoist on both interior sides. The carpeted rails serve as centering guides, ensuring safe and precise positioning on the hoist While these guides are compatible with pontoons and tritoons, T.A.P. fins may cause damage by cutting or tearing the carpet. For optimal performance and durability, we recommend the Pontoon/Tritoon Vinyl Guides as the preferred option for horizontal guiding.



FOAM POST CENTERING GUIDE - One of the most traditional centering guides, these are mounted at the four corners of the lifting platform. This centering device provides four soft upright posts that assist with keeping your watercraft centered on the hoist. Foam Post Guides are available in a set of two or four guides and are safe for virtually any watercraft style.

EXTENSION LEG OPTIONS: Freestanding Lifts such as this model utilize four, independently adjustable legs which are inserted into the corner columns of the hoist. When installed they allow you to adjust the height of the lift at each of the corners so that you can achieve a level plane across the hoist. Attached to each leg is a large base pad that will rest on the lake bottom.



STANDARD LEG - the standard leg option includes 54" legs (overall length) that provide 38" of usable height. The leg uses a large foot pad for stability and hitch pins for height adjustment. This telescoping design allows for proper installation in a variety of water depths up to 7 feet deep.



DEEP WATER LEGS - the longer adjustable 72" leg extensions provide 53" of usable height. These are used for deeper water and are a much heavier duty extrusion. The leg uses a large foot pad for stability and hitch pins for height adjustment. This telescoping design allows for proper installation in a variety of water depths up to 8.5 feet deep.

MOTOR STOP OPTIONS: Motor Stops are another optional style of parking aid that is designed to help with parking a watercraft. Motor Stops help prevent "overshooting" the parking location. The Motor stop are not suitable for Wake and Ski Style watercraft with drive shaft prop and rudders.



MOTOR STOP - Mounted to the stern end rack beam and assists with stopping your watercraft and prevents your boat from overrunning the lift. The Motor Stop is included with the Standard Hull support setup, but is NOT included with the Ski Hull support setup.

This product requires LTL freight delivery or local pickup from our location. Product assembly is required. It is recommended that this unit is assembled by experienced contractors or those experienced in boat hoist assembly and installation. Improper assembly and maintenance may void factory warranties. It is important to review and examine all assembly/use instruction guides prior to operation.

ADDITIONAL INFORMATION

• This product ships out common carrier freight. Please add this product to your shopping cart and then enter your postal code for estimated shipping costs.
• Tracking information will be provided via email when the shipper catalogs the pick-up.
