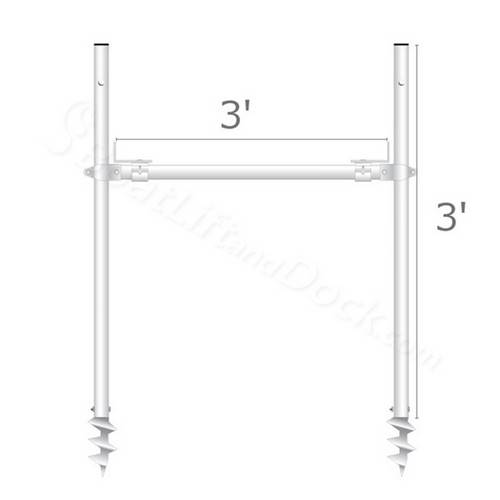

Traditional 3ft Wide H-Frame with 3ft Legs
Manufacturer: Private Label
Model: BLD-36x36H-Frame
Series: LakeFront Fix
Item Type: Dock - Leg Stand
Material: Aluminum
Designed to Fit: 36" Wide Frame
Traditional 3' Wide H-Frame with 3' Legs
Traditional 36" wide H-Frame support for boat dock sections up to 36" wide. Constructed from 2" circular aluminum pipe with .090" wall thickness. The all aluminum support provides a corrosion resistant and light weight support that is adjustable.
SUPPORT FEATURES
- All STAMPED ALUMINUM components
- Adjustable stringer brackets that move back and forth across the cross-arm
- Fully adjustable cross-arm clamps allow easy up and down leveling with 9/16" socket or wrench.
- 36" Max Width cross-arm assembly
- Turn hole to assist with auger installation
- All aluminum with zinc plated fastener
SUPPORT INCLUDES
- 2 capped 2" OD aluminum Posts / Legs
- 1 cross-arm 2" OD aluminum
- 2 cross-arm clamps
- 2 Stringer Brackets
- Choose from: two 8" base pads, 14" x 10" base pads OR Composite Augers
POST ATTACHMENT OPTIONS
8" x 8" aluminum bottom plates work well in sand and other solid lake bottoms. Not recommended for extremely deep mud or muck.
14" x 10" aluminum bottom plates provide a larger footprint for the leg and works better in area with softer lake bottoms, may not work well in extremely deep mud or muck.
16" x 16" aluminum bottom plates provides a very large footprint for the leg and works well in softer and muckier areas. The only downfall to this size base pad is that it can be difficult to remove.
Composite Augers are the recommended from of support for a dock that will have boats or watercraft tied to it. Using augers make installing the support more work than using just bottom plates. The augers help to anchor the dock to the lake bottom. You can also use a combination of base pad and auger for maximum support.
ADDITIONAL INFORMATION
- Ships via UPS
- Tracking information will be provided via email when the shipper catalogs the pick-up
- You can estimate your shipping charges by adding the item to your cart and entering your zip code into the shipping calculator
| Manufacturer: | Private Label |
| SKU: | BLD-36x36H-Frame |
| Base Group | |
| Product MPN: | BLD-36x36H-Frame |
| Model | |
| Model: | BLD-36x36H-Frame |
| Series: | LakeFront Fix |
| Quick Info | |
| Design: | H-Frame Support |
| Style: | H-Frame |
| Fasteners: | Zinc Plated Steel |
| Item Type: | Dock - Leg Stand |
| Material: | Aluminum |
| Part Type: | Dock Support |
| Designed to Fit: | 36" Wide Frame |
| Frame Spec | |
| Frame Material: | Aluminum |
| Support Spec | |
| Adjustable Leg Size: | 3' |
| Includes Legs: | Yes |
| Applications | |
| MaxWaterDepth: | 2' |
| Mounting: | Bolt On |
| Fits Post Size: | 2" OD |
| Dimensions | |
| Foot Pad Size: | 8" or 12" |
| Inside Stringer Distance: | 36" |
| Stringer Distance Adjustable: | Yes |
| Leg Post Length: | 3' |
| Shipping | |
| Typically Ships: | 3 - 5 Business Days |
| Shipping Method: | UPS/FedEx |
| Returns | |
| Restocking Fee: | Yes |
