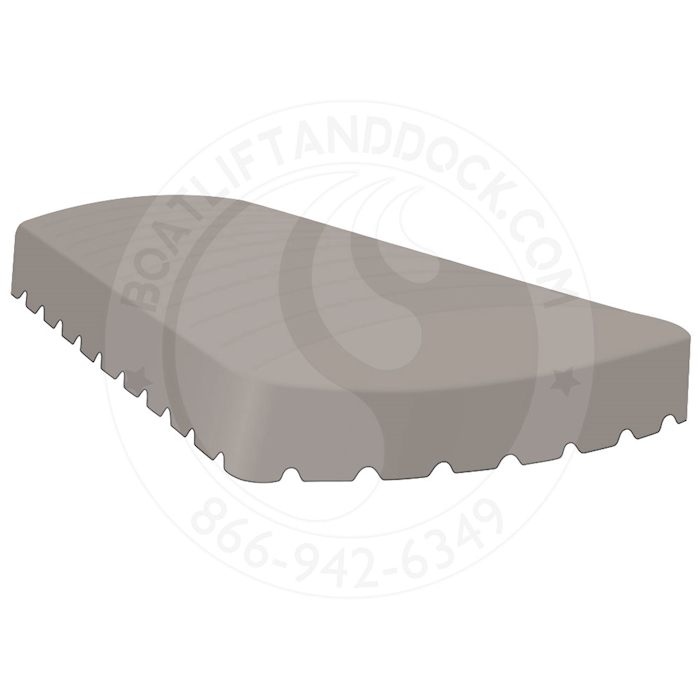

SHORESTATION 22' X 108" HYDROFEND REPLACEMENT CANOPY COVER

This aftermarket replacement cover is custom designed to specifically fit existing 22' X 108" Shore Station aluminum boat lift canopy frames.  Each comes complete with canopy cover, attaching hardware and storage bag.

Hydrofend™ Coated fabric is made in U.S.A. This fabric combines strength, beauty, and water repellency along with a lightweight and durable construction. Hydrofend outperforms uncoated fabrics with up to six times greater water resistance.  Forged from a durable polyester monofilament yarn with great tear and tensile strength, it is well suited for marine applications. The use of a proprietary solvent coating creates an armor to fend off surface abrasions and fraying while also providing defense against moisture. Hydrofend™ offers alightweight and durable option, It has a long lasting 8oz per yard material making Hydrofend easy to install and remove at a mere 1/3 to 1/2 of the weight of most common vinyl materials. Hydrofend canopies offer an attractive matte, woven appearance with 9 color options engineered to maintain their vibrancy season after season.

FEATURES

• Includes 8 oz Hydrofend solution-dyed and coated cover with frame attachment hardware kit
• Excellent Water Repellency
• High Tear and Tensile Strength
• Quicklash reinforced lacing canopy attachment system eliminates grommets, 25% stronger than traditional grommet system
• Quicklash webbing features UV and Mildew resistance for longer-lasting durability and strength
• Hot air rotary heat sealed and welded 1" overlapped seams on top panels and 1/2" on canopy ends
• Dabond twisted and bonded continuous filament polyester threading with high UV and water resistance
• Includes 5-year limited manufacturer's warranty
• 20" Canopy Valance Length

HYDROFEND AVAILABLE COLORS

Hydrofend canopy covers are available in 9 colors.

QUICKLASH CANOPY ATTACHMENT SYSTEM

When you order a new replacement canopy cover, we include Bungee Attaching Hardware so that you can secure the cover to your canopy frame.  Below is an overview of the attachment system present with cover options as described above.



The Quicklash canopy attachment system provides a user-friendly and easy to install design with increased strength and durability over traditional attachment systems.  Sewn into the interior of the cover, Quicklash is a fabric strip with reinforced lacing holes to eliminate the need of grommets to secure the canopy.  The Quicklash webbing is reinforced with Armor Bar, a high-tenacity polyester yarn which provides increased tear resistance and strength.



The 2-1/8" wide Quicklash webbing allows for quick and customizable installation with 1" lacing holes spaced every 3".  The canopy cover is secured utilizing the Quicklash webbing and supplied bungees.  The 1/4" stretchable, nylon covered, rubber bungees connect to any of the 1" lacing holes and then are secured to each specified attachment point on the existing canopy frame.  Once all bungees have been installed even tension is created around the perimeter of the canopy frame keeping the cover secure and in place on the frame.

SHORESTATION CANOPY FRAME MEASURING ASSISTANCE

Below we have provided an image that illustrates how to measure your canopy frame in order to determine the proper size cover.  ShoreStation aluminum canopy frames will have 4" round aluminum side frame tubes that extend from front to back of the frame.  Inserted into the ends of the side frame tube is a bracket that secures two canopy bows to create the canopy ends.  The frame will have a rounded peak top created by rounded canopy bows that are connected on each end to the 4" round side frame tube.  When measuring the length, please note that you must measure the length of the 4" canopy frame side tube and then add two feet to that measurement.  The length of the side tube plus two feet equals the proper canopy length that you will require.

• Length Measurement:  Length of 4" round aluminum side tube Plus 2 feet
• Width Measurement:  Inside width of lower canopy rail on a centerline from left to right

ADDITIONAL INFORMATION

Important Note:  Canopy covers are custom and built to order, each is specfic to the frame make and size.  It is important that the correct make and size canopy cover is ordered. Canopies returned due to incorrect size or make ordering errors are subject to restocking fees and in some cases may not be returnable.  If replacing an existing cover, check for a canopy tag for size information or contact the canopy frame manufacturer.  If you have any fit related questions after reviewing measuring instructions, please contact us. If contacting us for sizing assistance, please have images of the canopy frame in question available and measurements as outlined above.
