Single 10" Extension Leg for ShoreStation Leg Fram

Single 10" Extension Leg for ShoreStation Leg Frame - LX-10

Manufacturer: ShoreStation

Item Type: Dock - Support Leg

Designed to Fit: ShoreStation Leg Frames

Typically Ships: 3-7 Business Days

Email to a Friend
* Please Scroll Down for more information about this product.
Option
QTY:
OVERVIEW
SPECIFICATIONS
FAQ
OVERVIEW

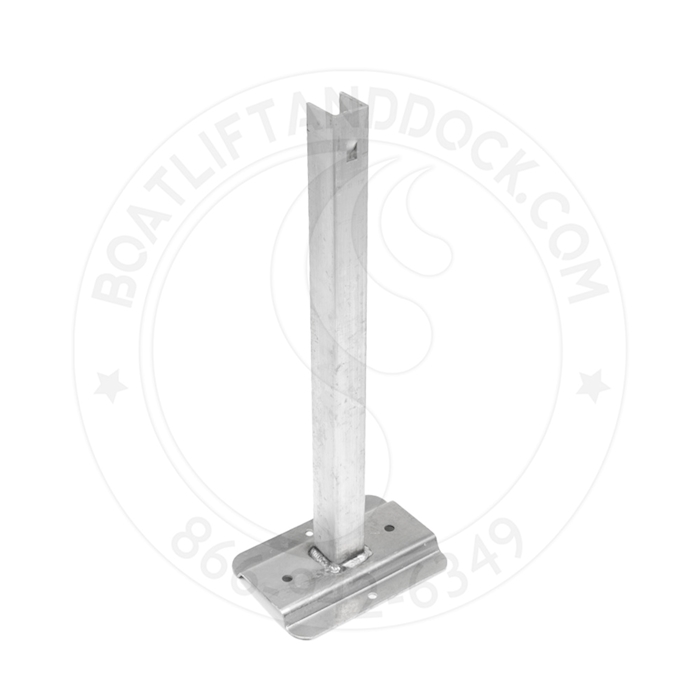

Extension Leg 10" for ShoreStation Leg Frame - LX-10

The ShoreStation Classic Dock 10" Leg Extension offers 10" of usuable leg height with a 6" x 8" base pad. These leg extensions are designed specifically for ShoreStation dock support leg frames.



WATER DEPTHS

  • Dock to Water Line is measured from the top of the dock to the top of the water. A minimum of 18” is recommended. In many cases, more than 18” is required to accommodate rough waves and other conditions.
  • Water Depth is measured from the water line to lake bed.


These leg frames are combined with our adjustable leg extensions to conform with the natural slope of the lake bed.The chart below lists the standard combinations of Leg Frames and adjustable Leg Extensions that can be used together to reach water depths upto 147” (12’ 3”).



* Maximum water depth is based on 18” from the top of the dock to the water line. Some lake conditions may require additional clearance.



 Leg Frame   Leg Extension   Height Leg Retracted   Height Leg Extended   Amount of Adjustment   Max Water Depth
LF15 LX10 17" 27" 10" 9"
LF22 LX17 24" 41" 17" 23"
LF36 LX31 38" 69" 31" 51"
LF48 LX49 56" 99" 43" 81"
LF66 LXH64 74" 130" 56" 112"
LF84 LXH82 91" 165" 74" 147"


Please feel free to contact us with any questions or concerns you may have with this system.


SPECIFICATIONS
Manufacturer: ShoreStation
SKU: LX10
Base Group
Product MPN: LX-10
General
Model: LX-10
Item Type: Dock - Support Leg
Part Type: Leg Extension
Designed to Fit: ShoreStation Leg Frames
Product Information
Adjustable Leg Size: 10"
For use with: ShoreStation Classic Dock
Frame Material: Aluminum
Shipping
Typically Ships: 3-7 Business Days
Shipping Method: UPS/FedEx
