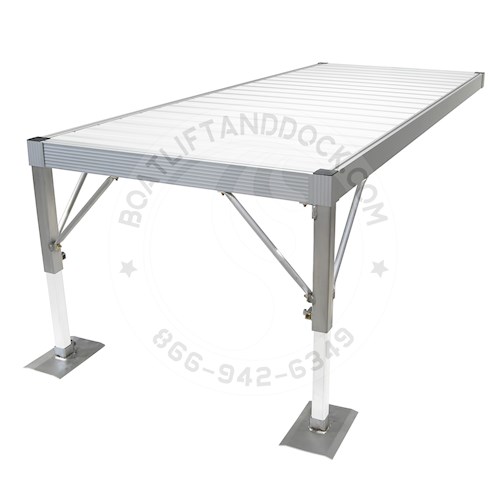

LS4 5' x 10' Anodized Aluminum Dock Section with Leg Frame
The LS4 Anodized Aluminum Dock Section is the ultimate residential dock solution, offering unparalleled strength, stability, and modular versatility. Crafted with a full 4" anodized aluminum box frame, the LS4 provides nearly twice the material compared to standard F-channel docks, resulting in exceptional rigidity and stability. Engineered with anodized, fluted tubular stringers and an accessory track system, it allows for fast, hassle-free installation of accessories without the need for drilling.
Designed as one of the strongest and most stable dock systems on the market, the LS4 provides unmatched value for your investment. While it’s a step up in cost from traditional 4' x 10' anodized aluminum docks, the LS4 offers significantly more metal and structural integrity per dollar, resulting in a dock that is both more robust and easier to install, especially when building a platform. The thicker boxed frame, with accessory rail grooves, adds strength even without accessories installed, and the integrated braces provide maximum lateral stability in all directions. Ideal for both new and experienced DIYers, the LS4 is easy to assemble and requires minimal maintenance, thanks to its durable anodized aluminum decking, which stays cool in the sun and is lighter than traditional wooden sections.
Key Features:
- Dimensions: 63" wide x 10' 5" long
- Construction: 4" tall anodized aluminum box frame for exceptional strength and rigidity
- Modular Design: Fully customizable with leg supports at any corner and versatile configuration options
- Accessory Track System: Easily add or remove accessories without drilling, maintaining a clean look
- Decking: Anodized aluminum treads for maximum durability
- Included Components: Two leg pockets, four diagonal pocket braces, two 8" x 12" footplates, and two section connectors
Effortless Setup and Flexibility
Each LS4 section is designed for simplicity in installation. Once you add leg posts (sold separately) depending on water depths of the area you have all necessary hardware included for a complete setup. This modular dock system lets you create custom platform configurations with ease by placing connectors and leg sockets on the sides of the dock instead of at the ends. Level each section as you go, making it easy to achieve a perfectly level platform without the hassle of aligning multiple sections simultaneously, as required in traditional setups.
The LS4 system offers unmatched adaptability for changing lake conditions. Adjust or reconfigure your dock layout with ease, moving leg sockets and connectors as needed for different depths, seasonal water changes, or new layout preferences. The LS4 works in both UDS styles, offering a clean look with adjustable heights or unlimited adjustability when poles are extended, making it perfect for environments with fluctuating water levels.
With its superior build, long-lasting materials, and affordable price point relative to traditional platform docks, the LS4 Dock Section delivers on performance, quality, and flexibility, making it the ultimate choice for any lakefront property.
ADDITIONAL INFORMATION
- Each Section includes two support pockets, four pocket braces, two base pads and two section connectors. The support pockets are compatible with our 2" OD aluminum dock post options (round or square) to make up your extension legs (dock post sold separately).
- Ships LTL Freight or can be picked up at our Plainwell facility once an order has been placed and confirmed.
