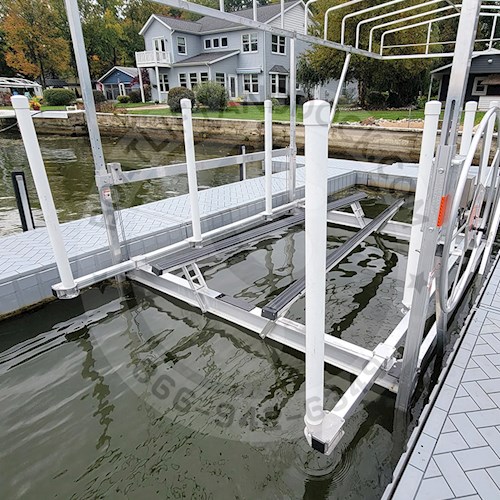

CRAFTLANDER 15' VERTICAL LOAD GUIDES WITH 8 UPRIGHTS

Craftlander's New Vertical Load Guides utilize six or eight rigid aluminum uprights with PVC covers. This is the eight upright kit. These are mounted to a 15' long heavy-duty side rail that easily attaches to the cradle I-beam. Each upright can be attached anywhere along the side rail. This guide kit is designed to attach to a 4" wide I-beam and will work with the 2,500lb through the 8,000 lb capacity Craftlander vertical lift or any other lift that uses a 4" wide I-beam. Mounting brackets can also be made to fit other I-beam sizes upon request.

KEY FEATURES

• Fully Adjustable Side Rails and Uprights
• Includes 8 Heavy Duty 5' Tall Uprights
• Uprights constructed of 3" OD schedule 80 aluminum tubing with 3.5" OD PVC covers
• Side Rails are constructed of 3" x 3" square aluminum tubing with a 1/8" thick wall

Vertical load guides are the best way to protect your boat, allowing the guide to make contact with the boat's rub rail, unlike horizontal guides that use the boat's hull most of the time to align the boat over the bunks. This can cause damage to the hull or remove decals. Vertical guides make contact where the boat is designed to take impact.

ADDITIONAL INFORMATION

• LTL Freight Shipping is standard. UPS shipping is available upon request and requires a custom shipping quote. If you want a custom shipping quote, please sign in or create an account, add the products you desire to your cart, and on the cart page, click the "Request a Quote" link, and we will run it manually. You can also do this if you want to pick up products from our Plainwell, Michigan location.
