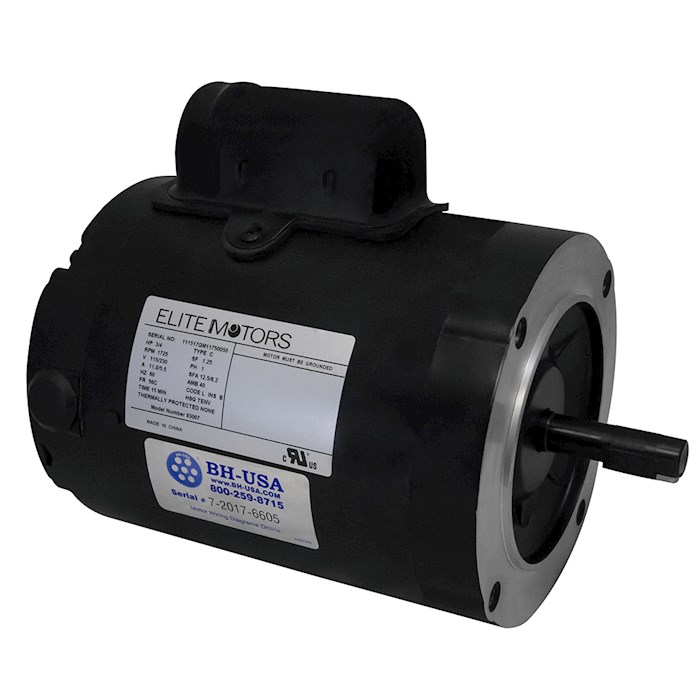

Elite 1 HP Painted C-Face Boat Lift Motor
The Elite 1 HP Painted C-Face Electric Motor is a single-phase, dual voltage motor. Painted black finish. Includes start capacitor. Direct drive mounting pattern. Compatible with our A-Drive direct drive boat hoists.
Compatible with BH-USA A-Drive Direct Drive Systems, Golden Sea Drives, and other direct-drive systems. Aluminum end bells included. Double shielded ball bearings. Dynamically balanced rotor.
NEMA 56C enclosure with IP-55 protection. UL/CSA listed and approved. TENV (totally enclosed, non-ventilating) housing. The TENV housing keeps dirt, insects, and water out.
Max runtime is 15 minutes. Finished in black. Includes colored T-wires. Comes with easy-to-follow instructions. Includes BH-USA’s equipment guide and wiring instructions.
C-Face Style Motors
The C-Face motor is a common mechanical standard in America. A rugged flange makes mounting the motor easier. The flange supports the motor’s weight. Usually attached to the gearbox. Cantilevering the motor is possible due to the strength of the flange.
This NEMA C-Face mount includes a machined-face flange and a pilot on the end of the shaft for direct coupling with equipment. A motor’s mounting face has threaded holes for bolts.
MOTOR FEATURES
- C-Face mounting design
- NEMA 56C electric motor
- UL Listed & CSA approved
- TENV - totally enclosed, non-venting
- Standard duty, dual voltage
- Single-phase motor with a start capacitor
- Powder-coated black from the factory
- 15 min. maximum run time
We recommend only a licensed electrician to wire or rewire any electrical component.
