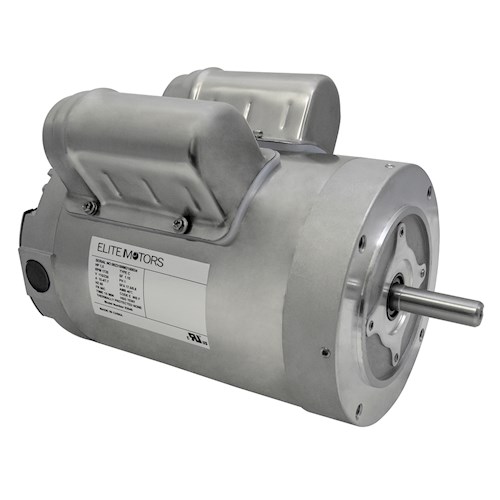

Elite 1 1/2 HP Stainless Steel Direct Drive Boat Lift Motor

This is a 1 1/2 HP painted boat lift motor with a 1725 RPM with a max run time of 15 minutes.

MOTOR FEATURES

• Totally inclosed, non-vented TENV housing which helps prevent dirt and insects from getting into the motor
• C-Face Mount that works with multiple direct drive systems including Golden and BH-USA
• 220 Volt Motor
• Single Phase
• 5/8" Shaft Diameter
• UL Listed and CSA approved

This is a motor only and does not come with GFCI wiring harness or boat lift switch. The motor is a standard duty, single phase, dual voltage motor with start capacitor and is comes only wired for 220v, but can be rewired to 110v. This unit fits mulitple direct drive systems and comes with easy to follow wiring diagrams. It also includes colored T-Wires and a cross-refernce wire chart for all Leeson Electra Gear motors. This motor has a 1 year manufacturers warranty. This motor style does not work with flat plate belt driven hoists.

We recommend only a licensed electrician to wire or rewire any electrical component.
