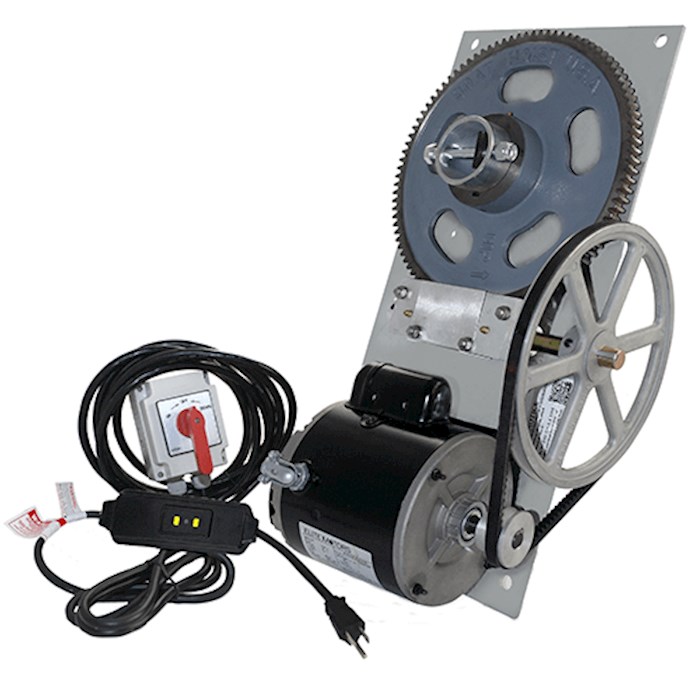

3,000 lb. Standard Flat Plate Boat Lift Hoist

Manufacturer: BH-USA

Item Type: Lift - Motors

Gear Ratio: 96:1

Motor Switch Type: Momentary Drum switch

Load Capacity: 3,000 lbs

Typically Ships: 3-6 Business Days

QTY:
Our Regular Price: $983.00
Configuration Price: $983.00
OVERVIEW

3,000 lb. Standard Flat Plate Boat Lift Hoist

The 3,000 lb. Standard Flat Plate Boat Lift Hoist is capable of straight-line lifts of up to 4,000 lbs.

MOTOR FEATURES

  • Cast Iron 96 Tooth Gear on a Harden Bronze Worm Gear that is enclosed, not just covered!
  • Totally Enclosed, Non-Vented (TENV) 3/4 HP Motor
  • Bronze-on-Steel Gearing
  • True Backplate Bearings
  • Easy-to-Reach Zerk Grease Fittings
  • 2" and 10" Aluminum Pulleys
  • AX-34 Drive Belt
  • No Steel-on-Steel Moving Parts

This unit is also designed with a solid aluminum extended block housing that strengthens and supports the back plate. This reduces heat build-up caused by friction and keeps the worm gear greased and aligned. Sleeve accepts 2 3/8 inch OD drive pipe.

Drum switches are used to turn the hoist on and off and we offer two different types of switches. Maintain switches (also know as Lock-On) will stay in position until manually turned off so you have to pay attention while the lift is raising or lowering. Spring switches (also referred to as Momentary) require the user hold the handle in the up or down position to lift or lower the boat and the switch will turn itself off when pressure is released from handle. The switches feature durable housings with extended handles for easy grip and wiring directions that work with most brands of boat hoist motors.

Pre-assembled and tested under load from the factory. All electrical parts are UL and NEMA compliant. Lifetime warranty on gear plate assembly and 1 year warranty on motor.

SPECIFICATIONS
Manufacturer: BH-USA
SKU: BH07255
General
Item Type: Lift - Motors
Product Information
Gear Ratio: 96:1
Motor HP: 3/4 HP
Motor Switch Type: Momentary Drum switch
Motor Voltage: 220v
Tooth Gear Material: Cast Iron
Back Plate Type: 1/2" Thick Marine Grade Aluminum
Worm Gear Material: Hardened Bronze
Load Capacity: 3,000 lbs
Control Cable Length: 16 ft.
Hoist Speed: Approx. 2 ft. / Minute
Shipping
Typically Ships: 3-6 Business Days
Shipping Method: UPS/FedEx
Warranty
Restocking Fee: Yes
