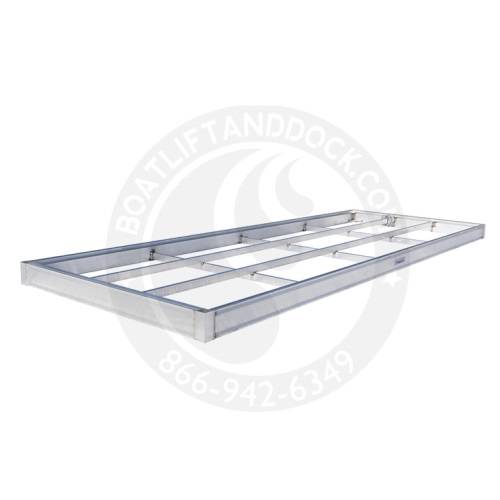

SHOREMASTER RS7 6' x 16' INFINITY DOCK FRAME

*Special Order Item - Extended Lead Time

ShoreMaster Infinity RS7 sectional freestanding dock system is a popular choice among many residential and commercial waterfront owners.  The RS7 Industry leading 6.75" tall, fully welded, full tube frame stringers offer an extremely rigid frame not commonly found in most sectional aluminum dock systems.  There are few comparisions available on the lake that match the  RS7 6ft x 16ft boat dock frame.  You will be hard pressed to find a frame with this much area space while offering the frame stregth found in the RS7 sectional dock frames.  Set this sytem up with a roll-in screw leg system or a T-handle adjustable leg kit.  Various decking options available, choose from  a rustic cedar look, or a traction friendly compsite or opt for the premium wood like appearance aluminum decking system.

RS7 KEY FEATURES

• HEAVY DUTY, Rolling or Standing Configurations
• All Welded Frame Aluminum Design
• Configuration options for Rolling and Freestanding
• Removable Decking,  for easier install and removal
• Commercial Strength 6.75" Tall, Fully welded Side Rails
• Easy to Customize - Quick Connect Accessory System
• Stainless Steel & Brass Fasteners
• Several Decking Material Options

The RS7 line by ShoreMaster is an versatile residential and commercial series dock with one of the most rugged construction of any free-standing dock we offer.  RS7 Infinity systems offer several section sizes including the signature round curve dock sections allowing for curved transitions and round/oval shaped platforms not found with competitor systems.  RS7 sectional dock features interior mounted leg pockets that keep your supporting legs inside the section footprint while allowing for a flush decking surface with no unsightly leg posts extending up past the decking.

DECKING OPTIONS

Unlike most sectional dock systems, the RS7 Frame sections offer one of the widest selections of various drop-in decking options in the industry.  Decking panels are available in several durable materials each with an unique appearance and finish.  Choose from these available options:

Cedar -  Nothing feels better to walk on than the soft, natural beauty of cedar decking.  Panels come in 6' panel widths and require eight panels per 6' x 16' RS7 dock frame.

White Aluminum - Powder-coated in brilliant white, you will get a clean, modern-looking surface that stays cool to the touch even on hot summer days.  The tread surface provides you with a safe, cool-to-the-touch decking option that is comfortable to walk upon.  Panels come in 6' panel widths and require eight panels per 6' x 16' RS7 dock frame.

Tan Aluminum - The Tan Aluminum decking is among the more popular decking options offered for the RS7.  Powder-coated in natural tan, you get an attractive decking option to complement your waterfront property.  Tan aluminum decking features a tread surface that stays cool to the touch and is comfortable to walk upon.  Panels come in 6' panel widths and require eight panels per 6' x 16' RS7 dock frame.

Woodgrain Aluminum (traditional oak) - You are looking for that natural look of real wood but you want it to be maintenance free?  Woodgrain aluminum decking give you just that.  Woodgrain powder coated aluminum decking will not rot, twist, warp or decay so your dock will look like new year after year.  Panels come in 6' panel widths and require eight panels per 6' x 16' RS7 dock frame.

Weathered Woodgrain Aluminum  - So you are looking for that natural look of real weathered wood but you want it to be maintenance free and with no splinters?  ShoreMaster now offers beautiful Weathered Wood-grain aluminum decking panels that will not rot, twist, warp or decay so your dock will look weathered year after year.  Panels come in 6' panel widths and require eight panels per 6' x 16' RS7 dock frame.

Each panel is specifically designed to fit the 6' wide RS7 dock frames.  The panel uses plastic clips with stainless steel screws to lock into position. You can also choose to provide your own decking.

CHOOSING LEGS

The RS7 systems give you the option to have post or no post sticking up above the surface of the dock.  The majority of our systems are installed utilizing the under dock support and have no posts sticking up above the surface of the dock, but you do have the option.  We recommend measuring your water depth every 8' - 10' that you are going out into the lake.  This allows you to more accurately determine the post lengths you will need.  We can also assist you in determining leg length for your dock, once these measurements are taken.

Infinity Leg Pocket with 5 Sided Dock Post - The most common support system for the RS7 dock utilizes the Infinity leg pocket system with ShoreMaster 5 sided aluminum post.  Located on the leg pocket is a stainless steel T-handle for leg height adjustments.  Once the leg pocket is tightened, 3 points of contact that secure and keep the leg from slipping.

Screw Leg Assembly with Base Pads - Offered in three size options:  Shallow, Standard and Deep.  Screw legs allow for easy height adjustments of your dock.  Each assembly includes a telescoping screw leg with two leg braces and a foot pad that secures to the telescoping leg.  Screw legs are adjusted at the top corner of the dock sections within the welded leg pockets.  A socket driver or wrench is required for making height adjustments.

Screw Leg Assembly with Poly Tires - Offered in four size options:  Super Shallow, Shallow, Standard and Deep.  Turn your sectional dock into a rolling dock.  These Screw legs allow for easy height adjustments of your dock along with creating a roll-in dock setup.  Each assembly includes a telescoping screw leg with two leg braces and wheel that secures to the telescoping leg.  Screw legs are adjusted at the top corner of the dock sections within the welded leg pockets.  A socket driver or wrench is required for making height adjustments.

QUICK CONNECT ACCESSORIES

QC Bracket - ShoreMaster uses a Quick Connect accessory bracket system for many of their more popular accessories and makes it very easy to install, remove or relocate accessories without tools.  The bracket fits onto the RS7 stringer and tightens using a stainless steel T-handle, no tools required!  Below is a list of available accessories that use this Quick Connect system.

• Canoe / Kayak Rack
• Dock Bench
• Dock Bumpers
• Dock Furniture
• Dock Stairs or Steps
• Flip-Up Swim Ladder
• Fishing Pole Holder
• Flag Pole Holder
• Handrail
• Ramp
• Umbrella Holder

ADDITIONAL INFORMATION

• This product requires freight delivery or local pickup from our location
• Some Product assembly is required
• *SPECIAL ORDER ITEM
