SHORESTATION ADJUSTABLE BUNK BRACKET KIT

This is an Adjustable Bunk Bracket kit compatible with many ShoreStation lifts with a V-Rack platform, ranging from 2,600 to 7,000 lbs capacity. The platform is the part of the lift where the bunk brackets are attached.

HOW IT WORKS

Simply slide a 1/2-13 X 6 5/16 X 3 1/4 stainless steel square u-bolt over the aluminum or galvanized steel v-frame extrusion from the outside in. Once the height of the bunk is determined the adjustable bunk bracket will be slid over the square u-bolts and all will be secured with a stainless steel flat washer and a brass locknut with a nylon insert.

These will not be secured tightly until the width from each other or from the center of the hoist and height above the aluminum v-frame is set on all of the brackets. This process will be repeated for the other three adjustable bunk brackets.

With the brackets in place mount the poly bunks or wood bunks (requires wood bunk bracket) on top of the brackets and secure with the 3/8 x 1 stainless steel bolt and brass locknut.

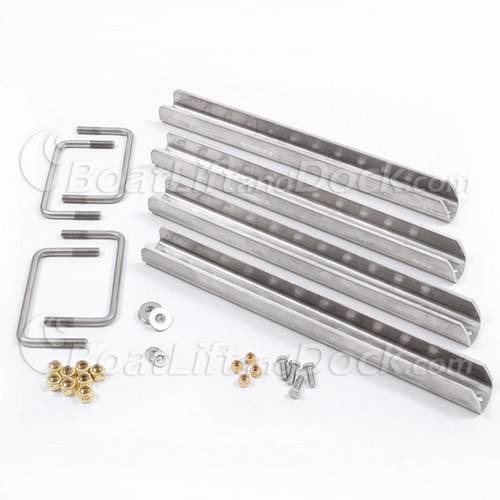

KIT INCLUDES

• 4 - 20" Adjustable Aluminum Bunk Brackets
• 4 - Square U-Bolt 1/2" x 6 5/16" x 3 1/4" Stainless Steel
• 4 - 3/8" x 1" Stainless Steel Bolt
• 8 - 1/2" Brass Nut with Nylon Insert
• 8 - 1/2" Stainless Steel Flat Washer
• 4 - 3/8" x 1" Bolt GR5
• 4 - 3/8" Brass Nut with Nylon Insert
• 4 - 3/8" Stainless Steel Flat Washer

Kit Includes: Four 20" aluminum adjustable bunk bars with U-bolt and nut hardware
