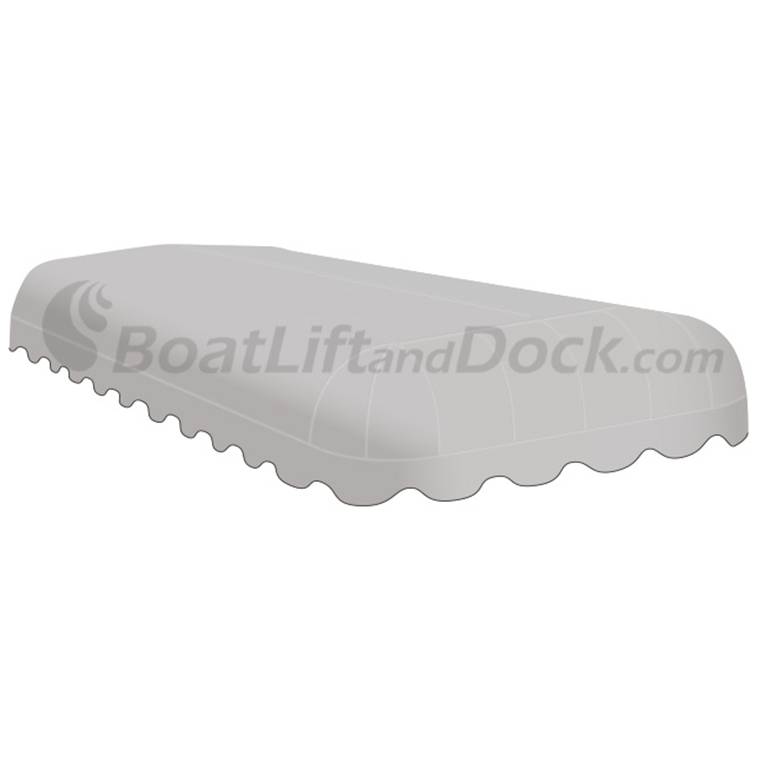

30' x 120" HARBORTIME® CANOPY COVER FOR SHOREMASTER

This aftermarket replacement cover is custom designed to specifically fit existing 30' X 120" ShoreMaster boat lift canopy frames.  Each canopy cover includes attaching hardware and a storage bag.

HarborTime Edge is an improvement of the original HarborTime fabric and features Perfecta Marine technology. The canopy covers are lighter-weight covers that have exceptional heat reduction, heat reflection and UV defense. Which means cooler surfaces and lower interior temperatures. The 11oz per yard fabric makes it easier to remove and install than traditional vinyl covers and the fabric is stabilized to ensure a continuous fit.

COVER DETAILS

• Includes 11oz HarborTime® Edge lift canopy cover and attachment hardware (canopy frame not included)
• Quiklash reinforced lacing canopy attachment system eliminates grommets, 25% stronger than traditional grommet system
• Quiklash webbing features UV and Mildew resistance for longer-lasting durability and strength
• Hot air rotary heat sealed and welded 1" overlapped seams on top panels and 1/2" on canopy ends
• Coats Dabond bonded and twisted continuous filament polyester threading with high UV and water resistance
• Exceptional UV performance and water repellency
• Includes a 5-year limited manufacturer's warranty
• 10" Valance Length
• Vented Ends

HarborTime® Available Colors

HarborTime® Canopy Covers are available in 10 different color options.

QUICKLASH CANOPY ATTACHMENT SYSTEM

When you order a new replacement canopy cover, we include Bungee Attaching Hardware so that you can secure the cover to your canopy frame.  Below is an overview of the attachment system present with cover options as described above.



The Quicklash canopy attachment system provides a user-friendly and easy-to-install design with increased strength and durability over traditional attachment systems.  Sewn into the interior of the cover, Quicklash is a fabric strip with reinforced lacing holes to eliminate the need for grommets to secure the canopy.  The Quicklash webbing is reinforced with Armor Bar, a high-tenacity polyester yarn that provides increased tear resistance and strength.



The 2-1/8" wide Quicklash webbing allows for quick and customizable installation with 1" lacing holes spaced every 3".  The canopy cover is secured utilizing the Quicklash webbing and supplied bungees.  The 1/4" stretchable, nylon-covered, rubber bungees connect to any of the 1" lacing holes and then are secured to each specified attachment point on the existing canopy frame.  Once all bungees with a ball attached have been secured to the lower frame even tension is created around the perimeter of the canopy frame keeping the cover secure and in place on the frame.

SHOREMASTER CANOPY FRAME MEASURING ASSISTANCE

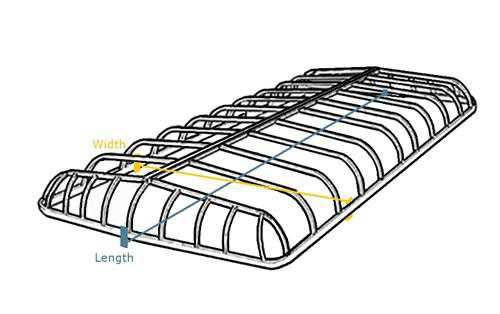

Below we have provided an image that illustrates how to measure your canopy frame in order to determine the proper size cover.  ShoreMaster canopy frames will have either a high rounded corners or flat frame end.  The frame slightly peaks to the center of the frame.  Just above the lower canopy rail in the interior of the frame is a flat bar running the length of the frame for bungee attachment.

• Length Measurement:  Outside length of the lower canopy rail on a centerline from front to back
• Width Measurement:  Inside width of lower canopy rail on a centerline from left to right

Important Note:  Canopy covers are custom and built to order, each is specfic to the frame make and size.  It is important that the correct make and size canopy cover is ordered. Canopies returned due to incorrect size or make ordering errors are subject to restocking fees and in some cases may not be returnable.  If replacing an existing cover, check for a canopy tag for size information or contact the canopy frame manufacturer.  If you have any fit related questions after reviewing measuring instructions, please contact us. If contacting us for sizing assistance, please have images of the canopy frame in question available and measurements as outlined above.
