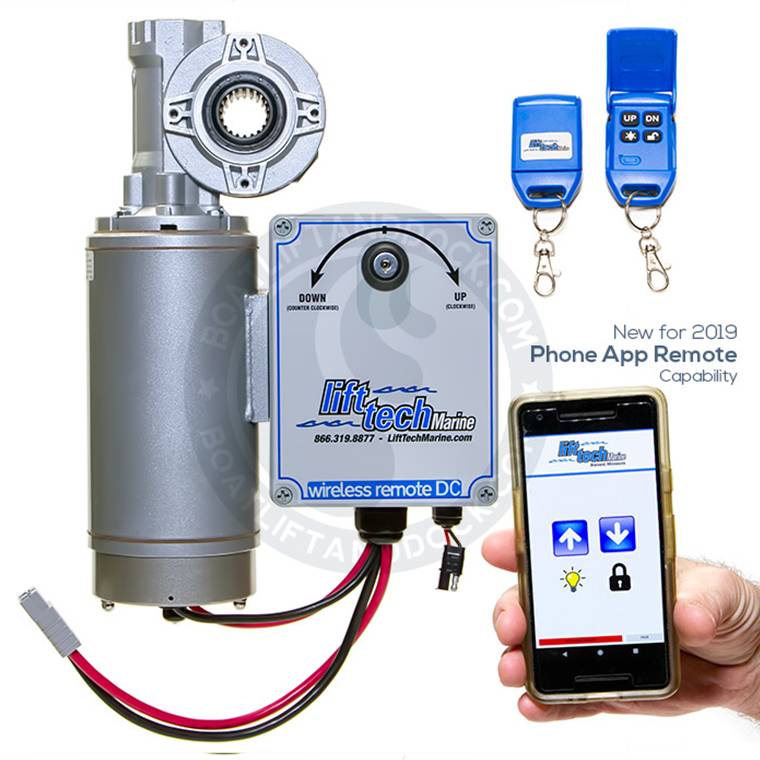

Lift Tech Marine DC 12v/24v Remote Lift Motor

The Lift Tech Marine model LT-DC100 is a key switch or remote operated direct drive boat lift motor that can be powered by either 12v OR 24v. The remotes give you the ability to operate the lift from inside the boat. They do not want you lifting or lowering yourself while you're in the boat, but you can bring the bunks up to help stabilize the boat to make it easier to exit. These units are easy and quick to install, Lift Tech Marine motor units available in AC and DC power options are packed with design features not found with competitors.

NEW Phone App Remote Control - Lift Tech Marine's new Phone App that allows you to control your boat lift motor from your phone. Simply install the app on your phone, sync your motor and phone through a Blue Tooth connection and away you go. The app is super easy to use and has a longer reach than the key FOB remotes (which are still included). This is a great addition to the already solid Lift Tech Marine line of boat lift motors.

Designed to fit a majority of manual operation freestanding lift manufacturers, this unit allows you to eliminate the hassle of turning that old round turn wheel. Once the Lift Tech motor is installed, it allows you to operate your boat hoist with the turn of a key or by the use of an optional corded push button pendant.

Lift Tech Marine Motor Units offered by BoatLiftandDock.com are of the most recent model revision. Featuring the most up-to-date safety and design features including soft start, and backwind/overwind amp limit sensors of which are not found on other aftermarket lift motor options.

KEY FEATURES

• Equipped with Soft Start and Power Indicator LED
• Low Maintenance
• Key Switch, Key Fob Remote Operation OR the *NEW* Lift Tech Marine Remote Phone App
• Runs on 12v or 24v DC
• Backwind and Upper Amp Limit Sensor Protection
• Designed and built to handle the elements, motor cover not required.
• Heavy duty multi-tooth spline for a stronger connection to winch
• Works on freestanding mechanical lifts up to 7000 lb. capacity
• Easy and quick installation
• 38 to 42 RPM on 12v system / 78 to 82 RPM on 24v system
• Backup Bit for manual operation of the unit in the event of a power outage or system malfunction
• 2 Year Warranty against manufacturer defects on all Lift Tech Marine motors.

SHOULD I DO 12V or 24V?

This motor allows either 12v DC (single battery) OR 24v (two batteries in series) to be used to power the unit. Both options do the job, but the use of 24v actually doubles the speed of the motor and shortens the lifting time. We put together a video that you can watch above to show the difference below the two. With the motors, it does not matter if you decide to go 12v or 24v until you get the motor, BUT if you are purchasing a solar kit, you will need to determine how it is powered prior to ordering a kit. The 12v and 24v power options will require different solar panels.

Please note, if installing this unit on a boat lift with greater than 5,000lb of lifting capacity it is strongly recommended that a 24V battery configuration be used for proper performance.

AVAILABLE ACCESSORIES

Canopy Light Option - The optional canopy lights offered by Lift Tech Marine are small but powerful and easily zip tie to a canopy bow on your canopy frame. The lights are constructed with a 3 LED light module (seen in the image to left) mounted to an aluminum bar roughly 12" in length. The light is pre-wired and plug directly into the lift tech motor. See images in the images scroller for this product.

INCLUDES

• LT-DC100 Power drive unit
• Choice of installation mounting hardware
• Backup Bit
• 2 Keys
• 2 Key Fob Remotes

Installation Hardware Kits- Lift Tech offers a variety of hardware installation kits specifically designed for certain boat lift manufacturers. Hardware kits allow for the motor unit to attach to an existing mechanical reduction winch assembly. Lift Tech direct drive motors fit a majority of both new and old freestanding hoist manufacturers. During checkout please specify the brand of lift or winch model the motor will be installed on.

Fits Following Lift Brands - ShoreStation, Hewitt, Beach King, CraftLander (NuCraft), Daka, Dock Rite, Dutton Lainson 1200B, Dutton Lainson 2500/3500, Dutton Lainson B1200A, Dutton Lainson B1500A, Great Lakes Lift, Harbor Master, Lakeshore Products, Lakeside, Metal Craft, Newman, Northern Lights, Pier Pleasure, Port-A-Dock, RGC, ShoreMaster, ShoreMaster Whisper Winch, ShoreMaster Whisper Winch 2, ShoreMate, Summit, Feighner, Ridgeline and Vibo winch types.

ADDITIONAL INFORMATION

• Tracking information will be provided via email when the shipper catalogs the pick-up.
