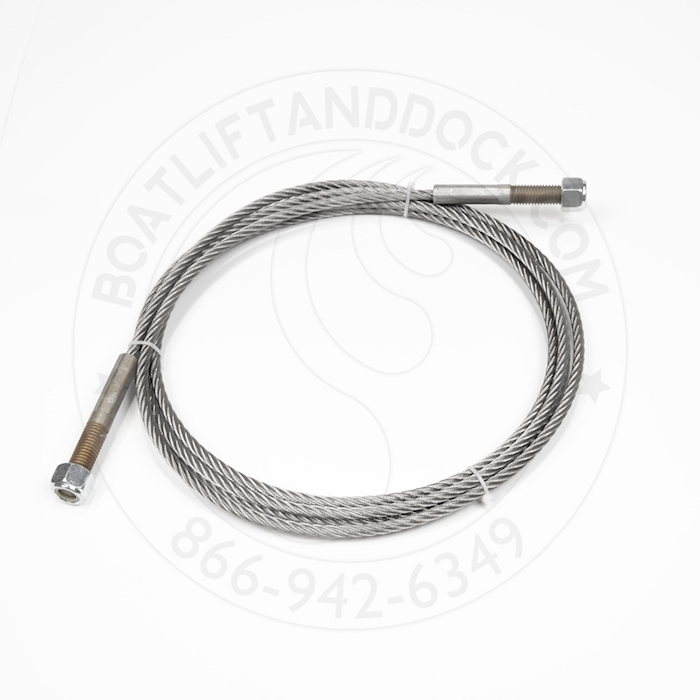

SHORESTATION NON-OEM STAINLESS LEVEL CABLE - 3110361
High Quality Stainless Steel Aftermarket ShoreStation Direct Replacement Level Cable - Replaces OEM Part Numbers: 3110361.
Cable designed for use with ShoreStation hydraulic hoist models: SSV40120HS, SSV50120HS, SSV60120HS.
Most freestanding ShoreStation hoists utilize two Leveling Cables. The leveling cable on ShoreStation hoists connect on one end to the top horizontal aluminum post brace on the non-winch side of the lift.
From this connection point the cable then routes down into the front or rear cradle cross member around the pulley, one located at each end of the cradle tube. The second end of the cable is then connected to the winch side lower frame tube. Cable ends have threaded bolt shafts and securing nuts.
CABLE LOCATION
| |
|
The leveling cable connects on one end to the top horizontal aluminum post brace on the non-winch side of the lift. From this connection point the cable then routes down into the front or rear cradle cross member around the sheave. It then runs across the cross member and over and around the second sheave.
The second end of the cable is then routed down and connected to the winch side lower frame tube. Cable ends have threaded bolt shafts and securing nuts on both ends of the cable. |
