Extension Leg 49" for ShoreStation Leg Frame - LX-49

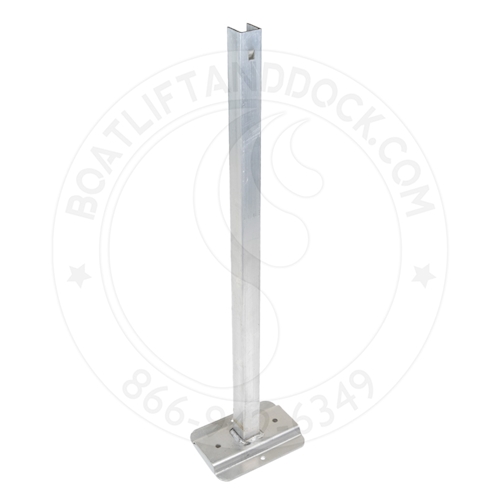

The ShoreStation Classic Dock 49" Leg Extension offers 49" of usable leg height with a 6" x 8" base pad. These leg extensions are designed specifically for ShoreStation dock support leg frames.
WATER DEPTHS
- Dock to Water Line is measured from the top of the dock to the top of the water. A minimum of 18” is recommended. In many cases, more than 18” is required to accommodate rough waves and other conditions.
- Water Depth is measured from the water line to lake bed.
These leg frames are combined with our adjustable leg extensions to conform with the natural slope of the lake bed.The chart below lists the standard combinations of Leg Frames and adjustable Leg Extensions that can be used together to reach water depths upto 147” (12’ 3”).
* Maximum water depth is based on 18” from the top of the dock to the water line. Some lake conditions may require additional clearance.
| Leg Frame | Leg Extension | Height Leg Retracted | Height Leg Extended | Amount of Adjustment | Max Water Depth |
| LF15 | LX10 | 17" | 27" | 10" | 9" |
| LF22 | LX17 | 24" | 41" | 17" | 23" |
| LF36 | LX31 | 38" | 69" | 31" | 51" |
| LF48 | LX49 | 56" | 99" | 43" | 81" |
| LF66 | LXH64 | 74" | 130" | 56" | 112" |
| LF84 | LXH82 | 91" | 165" | 74" | 147" |
Please feel free to contact us with any questions or concerns you may have with this system.
