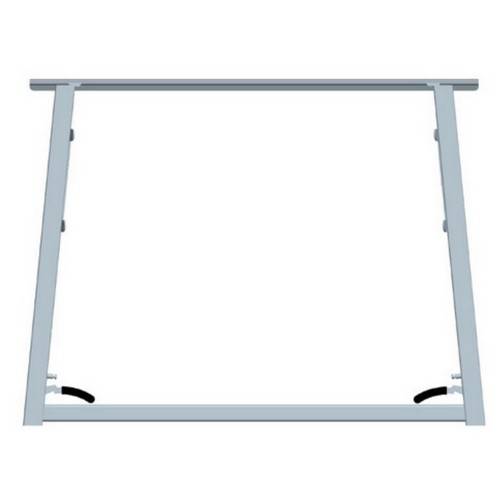

48" Leg Frame for Classic 6' Wide Dock - LF-48-6

Flimsy, unstable dock can be a real hazard, so play it safe with rock-solid Genuine ShoreStation Dock. This A-Frame stance provides a wider base for a level of stability and safety you won’t find in ordinary docks.

For maximum adjustability, leg frames (LF) are available in six different sizes: 15”, 22”, 36”, 48”, 66” and 84”. The same frames are used with both Stationary and Rolling Dock systems.

These leg frames are combined with our adjustable leg extensions to conform with the natural slope of the lake bed.

WATER DEPTHS

• Dock to Water Line is measured from the top of the dock to the top of the water. A minimum of 18” is recommended. In many cases, more than 18” is required to accommodate rough waves and other conditions.
• Water Depth is measured from the water line to lake bed


This chart lists the standard combinations of Leg Frames and adjustable Leg Extensions that can be used to reach water depths up to 147” (12’ 3”)

* Maximum water depth is based on 18” from the top of the dock to the water line. Some lake conditions may require additional clearance

Leg Frame	Leg Extension	Height w/Leg Retracted	Height w/Leg Extended	Total Amount of Adjustment	Maximum Water Depth
LF15	LX10	17"	27"	10"	9"
LF22	LX17	24"	41"	17"	23"
LF36	LX31	38"	69"	31"	51"
LF48	LX49	56"	99"	43"	81"
LF66	LXH64	74"	130"	56"	112"
LF84	LXH82	91"	165"	74"	147"
