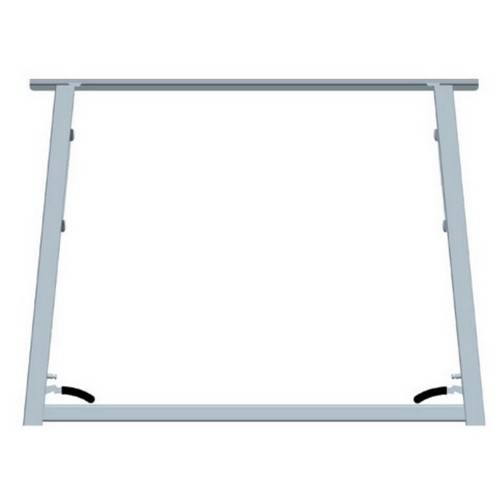

66" Leg Frame for Classic 4' Wide Dock - LF-66-4
Flimsy, unstable dock can be a real hazard, so play it safe with rock-solid Genuine ShoreStation Dock. This A-Frame stance provides a wider base for a level of stability and safety you won’t find in ordinary docks.
For maximum adjustability, leg frames (LF) are available in six different sizes: 15”, 22”, 36”, 48”, 66” and 84”. The same frames are used with both Stationary and Rolling Dock systems.
These leg frames are combined with our adjustable leg extensions to conform with the natural slope of the lake bed.
WATER DEPTHS
- Dock to Water Line is measured from the top of the dock to the top of the water. A minimum of 18” is recommended. In many cases, more than 18” is required to accommodate rough waves and other conditions.
- Water Depth is measured from the water line to lake bed
-
This chart lists the standard combinations of Leg Frames and adjustable Leg Extensions that can be used to reach water depths up to 147” (12’ 3”)
* Maximum water depth is based on 18” from the top of the dock to the water line. Some lake conditions may require additional clearance
| Leg Frame | Leg Extension | Height w/Leg Retracted | Height w/Leg Extended | Total Amount of Adjustment | Maximum Water Depth |
| LF15 | LX10 | 17" | 27" | 10" | 9" |
| LF22 | LX17 | 24" | 41" | 17" | 23" |
| LF36 | LX31 | 38" | 69" | 31" | 51" |
| LF48 | LX49 | 56" | 99" | 43" | 81" |
| LF66 | LXH64 | 74" | 130" | 56" | 112" |
| LF84 | LXH82 | 91" | 165" | 74" | 147" |
