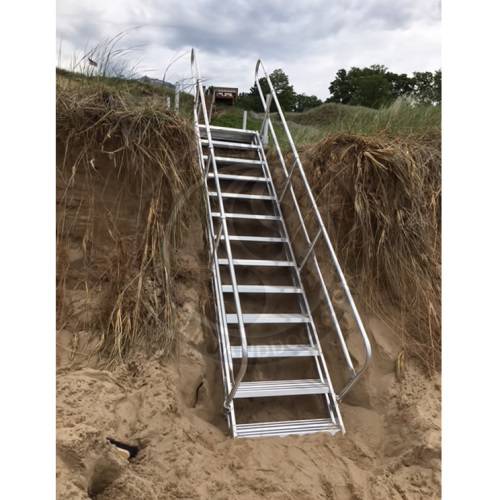

10 STEP ALUMINUM STAIRWAY WITH DUAL HANDRAILS

These All Aluminum Stairways are a lightweight and durable stair system that can be used for a variety of waterfront applications where stability and reliability matter most. These units are portable and virtually maintenance-free. The all aluminum construction is corrosion resistant, will never rot and there is no reason to paint...maintaining its attractive appearance for a lifetime. The stairway includes stainless steel fastened treads and an installation / mounting bracket with a solid axle. The stairs are designed with quality in mind!

Designed to adapt to various permanent or portable use applications. Lightweight, yet sturdy stair option featuring dual detachable handrails make for versatile and durable stair system.

STANDARD STAIRWAY FEATURES

• 45° Approach Standard
• 29.25" Standard Stairway Tread Width
• 34.5" Overall Stair Width
• Aluminum construction and will not rust or rot!
• Double Handrail standard on all step models
• 7" Non-Skid Stair Tread Depth
• 8.5" Stair Riser Height
• 1 1/4" OD Upper and Lower Handrail Bar
• Platform Available

With these stair systems, multiple stairways can be configured together to achieve much longer lengths and platforms can also be added above or between stairways. We can also create a lifting mechanism to raise and lower a stair system which works for private stair systems in public places.

DETERMINING STEP HEIGHT



When determining the stair length you need, there are a couple of things to remember. The standard approach or angle of the stairway is 45°, this will make the rise (B) equal to the run (A)  in the illustration to the left. So it is important to know the height of where the stair will begin AND you will need to measure for the run to know exactly where your stair will end. The stairway can end on really any type of base, concrete, sand, grass, wood...as long as it is solid. A soft base could be a problem. If the end is resting on concrete, the bottom of the stairway can be bolted into the concrete.

This information will allow you to decide if the standard 45° angle will work for your application. Custom approach angles are available from 35° to 55°. Please contact us for custom approach angles.



Adjustable leveling legs are also available for the bottom end of the stairway. If you find the landing area of the stair is not level from side to side, leveling legs can be added that are independently adjusted. Keep in mind that when you add the additional height of the leveling leg, your first step will increase.

Adjustable leveling legs are not included and must be added in the drop downs above.

MOUNTING HARDWARE & INSTALLATION



The attaching bracket makes installing the unit quite easy. The top of the stairway has two large pins that drop into the bracket and is how the unit connects to the bracket. The bracket should be fastened to a bulkhead or similar structure using a minimum of 4 bolts. The bolts should be located on the tabs on the bracket so they do not cause a trip hazard. There are tabs to attach to both the top and side of the bulkhead.

The attaching bracket is included with the stairway.

A 20’ stairway weights approximately 200 pounds, yet supports loads in excess of 1600 pounds. It can be carried and installed by two individuals. Stairways can be custom fabricated for specific applications. Stairways in excess of 100' have been fabricated where conditions allow support structures to be installed at 20' intervals.

ADDITIONAL INFO

• Product ships common carrier freight knocked down on a pallet.
• Requires some assembly, mainly the handrails.
